Mathey Dearman Q.C. Welders Gauge English #D253-E
Mathey Dearman Q.C. Welders Gauge English #D253-E

Alternative Views:

Our Price: $39.95

Availability:: Usually Ships in 1 to 2 Business Days

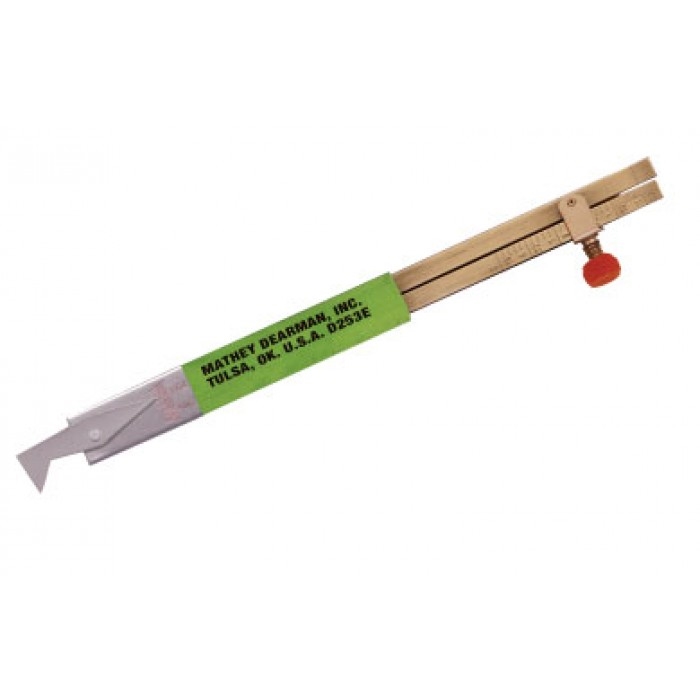

Mathey Dearman: Q.C. Welders Gauge (English) #D253-E
  • The English Quality Control (Q.C.) Welder's Gauges rapidly and accurately measures pipe
  • “Hi-Lo” and plate mismatch before and after weld tack up to minimize weld rejections.
  • The Brass Wedge shaped end placed between the two adjoining surfaces accurately measure weld gap.
  • The piano wires in square end placed through the weld gap measures pipe inside diameter or plate “Hi-Lo” to minimize radio-graphic rejections.

NOW INCLUDES: Pit Depth Gauge
This accessory gauge mounts on the Q.C. Welders Gauge.
  • The Pit Depth Gauge measures depth of pitting, weld undercut, pipe outside diameter, “Hi-Lo,” and weld height.
  • The stainless steel pit depth gauge mounts on the end of the Q.C. Welder’s Gauge housing and reads in both English and Metric dimensions.

  • PRECISE—Measurement as small as 1/64" (.4mm) can be taken with gauge.
  • EASY TO USE—Simply slide the Pit Depth Gauge over the Q.C. Gauge and take a reading.
